INCAN Bi-Metalic Castings
• Hardness: HRc60 - HRa94
| Bi-metal | MS with High Cr | |
| Hardness | 60 HRc | |
| Thickness of Pipe | MS - Min 5mm, HiCr- Min 8mm | MS - up to requirement. HiCr: up to requirement. |
| Inner Diameter | Min 50mm, | Max., up to requirement. |
| Outer Diameter | Min 90mm | Max., up to requirement. |
| Length | Single Piece 1500mm | Upto any length |

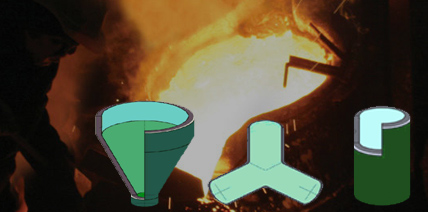

Bi-metal Elbow and Collector are one piece material and there are no joints and manufactured with help of melting process.
- Long Service Life: Due to High Hardness up to HRc 60.
- Easy welding and joining: As same as MS.
- Lower flow resistance: Smooth surface inside.
- Checking online by UT (Ultrasonic Test): To check worn thickness of wear area by UT.
